Vue中的diff算法深度解析

模板tamplate经过parseoptimizegenerate等一些列操作之后,把AST转为render function code进而生成虚拟VNode,模板编译阶段基本已经完成了,那么这一章,我们来探讨一下Vue中的一个算法策略–dom diff 首先来介绍下什么叫dom diff

什么是虚拟dom

我们经过前面的章节学习已经知道,要知道渲染真实DOM的开销是很大的,比如有时候我们修改了某个数据,如果直接渲染到真实dom上会引起整个dom树重绘重排,有没有可能我们只更新我们修改的那一小块dom而不要更新整个dom呢?

为了解决这个问题,我们的解决方案是–根据真实DOM生成一颗virtual DOM,当virtual DOM某个节点的数据改变后会生成一个新的Vnode,然后Vnode和oldVnode作对比,发现有不一样的地方就直接修改在真实的DOM上,然后使oldVnode的值为Vnode。这也就是我们所说的一个虚拟dom diff的过程

图示

在这里插入图片描述

传统的Diff算法所耗费的时间复杂度为O(n^3),那么这个O(n^3)是怎么算出来的?

  1. 传统diff算法时间复杂度为n(第一次Old与新的所有节点对比)—-O(n)
  2. 传统diff算法时间复杂度为n(第二次Old树的所有节点与新的所有节点对比)—-O(n^2)
  3. 新树的生成,节点可变编辑,时间复杂度为n(遍历当前树)—-O(n^3)

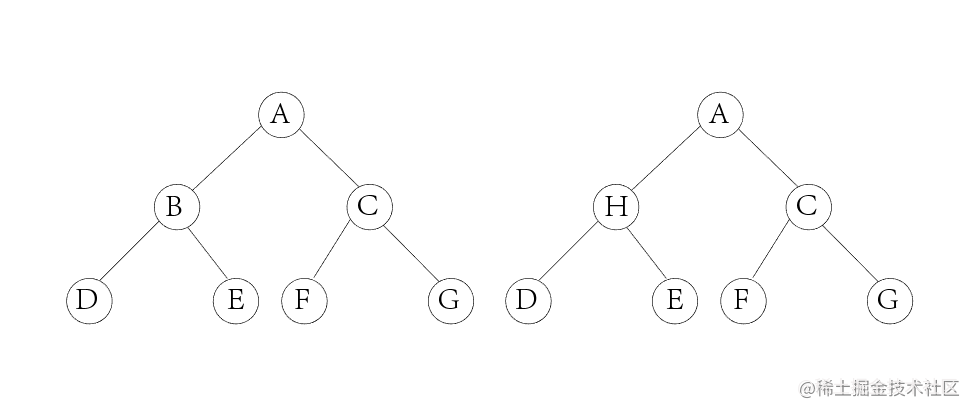

第一次对比 (1:n)

在这里插入图片描述

第二次对比 (1:n)

在这里插入图片描述

第n次对比 (n:n)

在这里插入图片描述

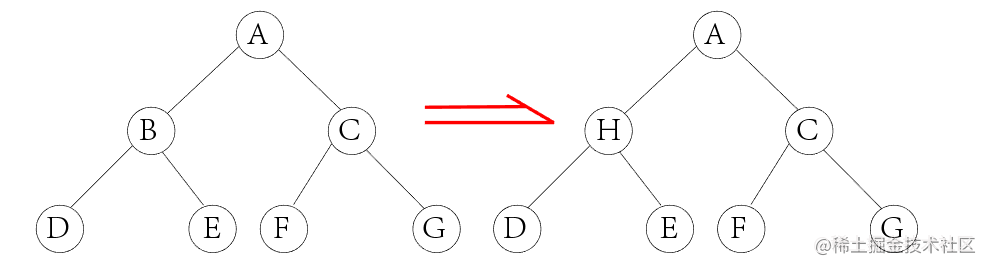

到这里那么n个节点与n个节点暴力对比就对比完了,那么就开启第三轮可编辑树节点遍历,更改之后的树由vdom(old)vdom(new)

在这里插入图片描述

故而传统diff算法O(n^3)是这么算出来的,但是这不是我们今天研究的重点。

现代diff算法

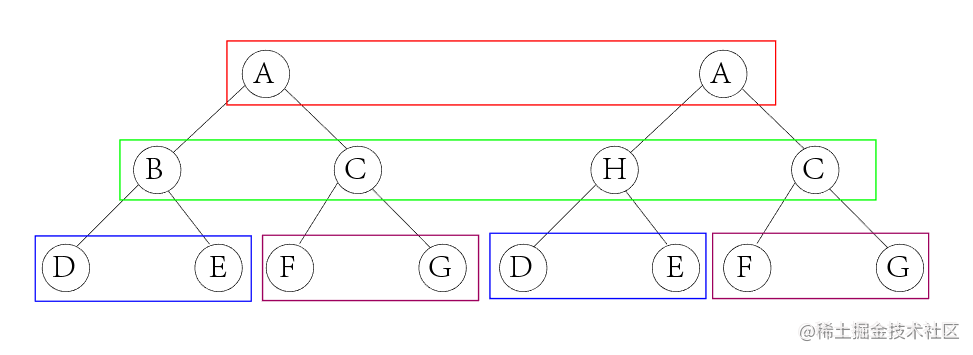

现代diff算法策略说的是,同层级比较,广度优先

在这里插入图片描述

那么这里的话我们要深入源码了,在深入源码之前我们在心中应该形成这样一个概念,整个diff的流程是什么?我们再对比着源码解读

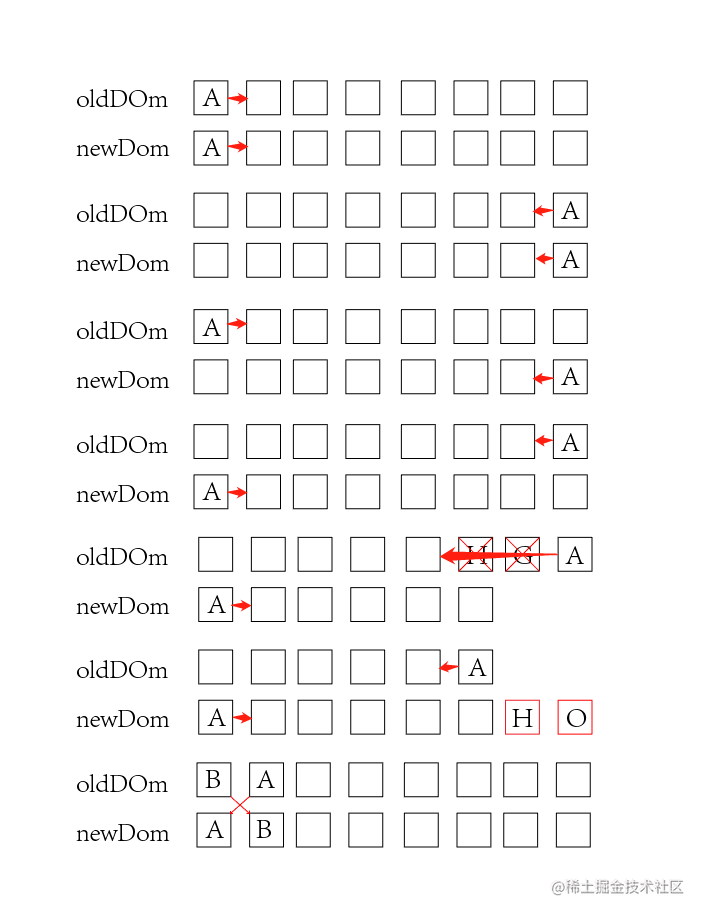

diff算法流程图

在这里插入图片描述

深入源码

我们在Vue初始化的时候调用lifecycleMixin函数的时候,会给Vue的原型上挂载_update方法

_update

Vue.prototype._update = function (vnode: VNode, hydrating?: boolean) {
    const vm: Component = this
    if (vm._isMounted) {
      //会调用声明周期中的beforeUpdate回调函数
      callHook(vm, 'beforeUpdate')
    }
    const prevEl = vm.$el
    const prevVnode = vm._vnode
    const prevActiveInstance = activeInstance
    activeInstance = vm
    vm._vnode = vnode
    // Vue.prototype.__patch__ is injected in entry points
    // based on the rendering backend used.
    //若组件本身的vnode未生成,直接用传入的vnode生成dom
    if (!prevVnode) {
      // initial render
      vm.$el = vm.__patch__(
        vm.$el, vnode, hydrating, false /* removeOnly */,
        vm.$options._parentElm,
        vm.$options._refElm
      )
      // no need for the ref nodes after initial patch
      // this prevents keeping a detached DOM tree in memory (#5851)
      vm.$options._parentElm = vm.$options._refElm = null
    } else {
      //对新旧vnode进行diff
      // updates
      vm.$el = vm.__patch__(prevVnode, vnode)
    }
    activeInstance = prevActiveInstance
    // update __vue__ reference
    if (prevEl) {
      prevEl.__vue__ = null
    }
    if (vm.$el) {
      vm.$el.__vue__ = vm
    }
    // if parent is an HOC, update its $el as well
    if (vm.$vnode && vm.$parent && vm.$vnode === vm.$parent._vnode) {
      vm.$parent.$el = vm.$el
    }

我们在这里可以看到vm.$el = vm.__patch__方法,追根溯源_patch_的定义:

参考 Vue面试题详细解答

Vue.prototype.__patch__ = inBrowser ? patch : noop

可见这里是一个浏览器环境的鉴别,如果在浏览器环境中,我们会执行patch,不在的话会执行noop,这是一个util里面的一个方法,用来跨平台的,我们这里暂时不考虑,接着我们去看patch的具体实现./patch文件,

import * as nodeOps from 'web/runtime/node-ops'
import { createPatchFunction } from 'core/vdom/patch'
import baseModules from 'core/vdom/modules/index'
import platformModules from 'web/runtime/modules/index'
const modules = platformModules.concat(baseModules)

export const patch: Function = createPatchFunction({ nodeOps, modules })

createPatchFunction函数

/** * 创建patch方法 */
export function createPatchFunction (backend) {
  let i, j
  const cbs = {}

  const { modules, nodeOps } = backend

  for (i = 0; i < hooks.length; ++i) {
    cbs[hooks[i]] = []
    for (j = 0; j < modules.length; ++j) {
      if (isDef(modules[j][hooks[i]])) {
        cbs[hooks[i]].push(modules[j][hooks[i]])
      }
    }
  }

  function emptyNodeAt (elm) {
    return new VNode(nodeOps.tagName(elm).toLowerCase(), {}, [], undefined, elm)
  }

  /**   * 创建一个回调方法, 用于删除节点   *    *    */
  function createRmCb (childElm, listeners) {
    function remove () {
      if (--remove.listeners === 0) {
        removeNode(childElm)
      }
    }
    remove.listeners = listeners
    return remove
  }

  function removeNode (el) {
    const parent = nodeOps.parentNode(el)
    // element may have already been removed due to v-html / v-text
    if (isDef(parent)) {
      nodeOps.removeChild(parent, el)
    }
  }

  /**   * 通过vnode的tag判断是否是原生dom标签或者组件标签   * 用于创建真实DOM节点时, 预先判断tag的合法性   */
  function isUnknownElement (vnode, inVPre) {
    return (
      !inVPre &&
      !vnode.ns &&
      !(
        config.ignoredElements.length &&
        config.ignoredElements.some(ignore => {
          return isRegExp(ignore)
            ? ignore.test(vnode.tag)
            : ignore === vnode.tag
        })
      ) &&
      config.isUnknownElement(vnode.tag)
    )
  }

  let creatingElmInVPre = 0

  // 创建一个节点
  function createElm (
    vnode,
    insertedVnodeQueue,
    parentElm,
    refElm,
    nested,
    ownerArray,
    index
  ) {
    // 节点已经被渲染, 需要使用一个克隆节点
    if (isDef(vnode.elm) && isDef(ownerArray)) {
      // This vnode was used in a previous render!
      // now it's used as a new node, overwriting its elm would cause
      // potential patch errors down the road when it's used as an insertion
      // reference node. Instead, we clone the node on-demand before creating
      // associated DOM element for it.
      vnode = ownerArray[index] = cloneVNode(vnode)
    }

    // 创建组件节点 详见本文件中的createComponent方法
    vnode.isRootInsert = !nested // for transition enter check
    if (createComponent(vnode, insertedVnodeQueue, parentElm, refElm)) {
      return
    }

    const data = vnode.data
    const children = vnode.children
    const tag = vnode.tag
    /**     * 如果要创建的节点有tag属性, 这里做一下校验     * 如果该节点上面有v-pre指令, 直接给flag加1     * 如果没有v-pre需要调用isUnknownElement判断标签是否合法, 然后给出警告     */
    if (isDef(tag)) {
      if (process.env.NODE_ENV !== 'production') {
        if (data && data.pre) {
          creatingElmInVPre++
        }
        if (isUnknownElement(vnode, creatingElmInVPre)) {
          warn(
            'Unknown custom element: <' + tag + '> - did you ' +
            'register the component correctly? For recursive components, ' +
            'make sure to provide the "name" option.',
            vnode.context
          )
        }
      }

      vnode.elm = vnode.ns
        ? nodeOps.createElementNS(vnode.ns, tag)
        : nodeOps.createElement(tag, vnode)
      setScope(vnode)

      /* istanbul ignore if */
      if (__WEEX__) {
        // in Weex, the default insertion order is parent-first.
        // List items can be optimized to use children-first insertion
        // with append="tree".
        const appendAsTree = isDef(data) && isTrue(data.appendAsTree)
        if (!appendAsTree) {
          if (isDef(data)) {
            invokeCreateHooks(vnode, insertedVnodeQueue)
          }
          insert(parentElm, vnode.elm, refElm)
        }
        createChildren(vnode, children, insertedVnodeQueue)
        if (appendAsTree) {
          if (isDef(data)) {
            invokeCreateHooks(vnode, insertedVnodeQueue)
          }
          insert(parentElm, vnode.elm, refElm)
        }
      } else {
        createChildren(vnode, children, insertedVnodeQueue)
        if (isDef(data)) {
          invokeCreateHooks(vnode, insertedVnodeQueue)
        }
        insert(parentElm, vnode.elm, refElm)
      }

      if (process.env.NODE_ENV !== 'production' && data && data.pre) {
        creatingElmInVPre--
      }
    } else if (isTrue(vnode.isComment)) {
      vnode.elm = nodeOps.createComment(vnode.text)
      insert(parentElm, vnode.elm, refElm)
    } else {
      vnode.elm = nodeOps.createTextNode(vnode.text)
      insert(parentElm, vnode.elm, refElm)
    }
  }
  /**   * 创建组件   * 如果组件实例已经存在, 只需要初始化组件并重新激活组件即可   */
  function createComponent (vnode, insertedVnodeQueue, parentElm, refElm) {
    let i = vnode.data
    if (isDef(i)) {
      const isReactivated = isDef(vnode.componentInstance) && i.keepAlive
      if (isDef(i = i.hook) && isDef(i = i.init)) {
        i(vnode, false /* hydrating */, parentElm, refElm)
      }
      // after calling the init hook, if the vnode is a child component
      // it should've created a child instance and mounted it. the child
      // component also has set the placeholder vnode's elm.
      // in that case we can just return the element and be done.
      if (isDef(vnode.componentInstance)) {
        initComponent(vnode, insertedVnodeQueue)
        if (isTrue(isReactivated)) {
          reactivateComponent(vnode, insertedVnodeQueue, parentElm, refElm)
        }
        return true
      }
    }
  }

  /**   * 初始化组件   * 主要的操作是已插入的vnode队列, 触发create钩子, 设置style的scope, 注册ref   */
  function initComponent (vnode, insertedVnodeQueue) {
    if (isDef(vnode.data.pendingInsert)) {
      insertedVnodeQueue.push.apply(insertedVnodeQueue, vnode.data.pendingInsert)
      vnode.data.pendingInsert = null
    }
    vnode.elm = vnode.componentInstance.$el
    if (isPatchable(vnode)) {
      invokeCreateHooks(vnode, insertedVnodeQueue)
      setScope(vnode)
    } else {
      // empty component root.
      // skip all element-related modules except for ref (#3455)
      registerRef(vnode)
      // make sure to invoke the insert hook
      insertedVnodeQueue.push(vnode)
    }
  }

  /**   * 激活组件   */
  function reactivateComponent (vnode, insertedVnodeQueue, parentElm, refElm) {
    let i
    // hack for #4339: a reactivated component with inner transition
    // does not trigger because the inner node's created hooks are not called
    // again. It's not ideal to involve module-specific logic in here but
    // there doesn't seem to be a better way to do it.
    let innerNode = vnode
    while (innerNode.componentInstance) {
      innerNode = innerNode.componentInstance._vnode
      if (isDef(i = innerNode.data) && isDef(i = i.transition)) {
        for (i = 0; i < cbs.activate.length; ++i) {
          cbs.activate[i](emptyNode, innerNode)
        }
        insertedVnodeQueue.push(innerNode)
        break
      }
    }
    // unlike a newly created component,
    // a reactivated keep-alive component doesn't insert itself
    insert(parentElm, vnode.elm, refElm)
  }

  /**   * 插入节点, 有父节点的插入到前面, 没有的插入到后面   */
  function insert (parent, elm, ref) {
    if (isDef(parent)) {
      if (isDef(ref)) {
        if (ref.parentNode === parent) {
          nodeOps.insertBefore(parent, elm, ref)
        }
      } else {
        nodeOps.appendChild(parent, elm)
      }
    }
  }

  function createChildren (vnode, children, insertedVnodeQueue) {
    if (Array.isArray(children)) {
      if (process.env.NODE_ENV !== 'production') {
        checkDuplicateKeys(children)
      }
      for (let i = 0; i < children.length; ++i) {
        createElm(children[i], insertedVnodeQueue, vnode.elm, null, true, children, i)
      }
    } else if (isPrimitive(vnode.text)) {
      nodeOps.appendChild(vnode.elm, nodeOps.createTextNode(String(vnode.text)))
    }
  }

  function isPatchable (vnode) {
    while (vnode.componentInstance) {
      vnode = vnode.componentInstance._vnode
    }
    return isDef(vnode.tag)
  }

  function invokeCreateHooks (vnode, insertedVnodeQueue) {
    for (let i = 0; i < cbs.create.length; ++i) {
      cbs.create[i](emptyNode, vnode)
    }
    i = vnode.data.hook // Reuse variable
    if (isDef(i)) {
      if (isDef(i.create)) i.create(emptyNode, vnode)
      if (isDef(i.insert)) insertedVnodeQueue.push(vnode)
    }
  }

  // set scope id attribute for scoped CSS.
  // this is implemented as a special case to avoid the overhead
  // of going through the normal attribute patching process.
  function setScope (vnode) {
    let i
    if (isDef(i = vnode.fnScopeId)) {
      nodeOps.setStyleScope(vnode.elm, i)
    } else {
      let ancestor = vnode
      while (ancestor) {
        if (isDef(i = ancestor.context) && isDef(i = i.$options._scopeId)) {
          nodeOps.setStyleScope(vnode.elm, i)
        }
        ancestor = ancestor.parent
      }
    }
    // for slot content they should also get the scopeId from the host instance.
    if (isDef(i = activeInstance) &&
      i !== vnode.context &&
      i !== vnode.fnContext &&
      isDef(i = i.$options._scopeId)
    ) {
      nodeOps.setStyleScope(vnode.elm, i)
    }
  }

  function addVnodes (parentElm, refElm, vnodes, startIdx, endIdx, insertedVnodeQueue) {
    for (; startIdx <= endIdx; ++startIdx) {
      createElm(vnodes[startIdx], insertedVnodeQueue, parentElm, refElm, false, vnodes, startIdx)
    }
  }

  // 递归调用销毁钩子
  function invokeDestroyHook (vnode) {
    let i, j
    const data = vnode.data
    if (isDef(data)) {
      if (isDef(i = data.hook) && isDef(i = i.destroy)) i(vnode)
      for (i = 0; i < cbs.destroy.length; ++i) cbs.destroy[i](vnode)
    }
    if (isDef(i = vnode.children)) {
      for (j = 0; j < vnode.children.length; ++j) {
        invokeDestroyHook(vnode.children[j])
      }
    }
  }

  /**   * 删除多个节点   * 文本节点可以直接删除, 其他节点需要触发两个钩子   */
  function removeVnodes (parentElm, vnodes, startIdx, endIdx) {
    for (; startIdx <= endIdx; ++startIdx) {
      const ch = vnodes[startIdx]
      if (isDef(ch)) {
        if (isDef(ch.tag)) {
          removeAndInvokeRemoveHook(ch)
          invokeDestroyHook(ch)
        } else { // Text node
          removeNode(ch.elm)
        }
      }
    }
  }

  function removeAndInvokeRemoveHook (vnode, rm) {
    if (isDef(rm) || isDef(vnode.data)) {
      let i
      const listeners = cbs.remove.length + 1
      if (isDef(rm)) {
        // we have a recursively passed down rm callback
        // increase the listeners count
        rm.listeners += listeners
      } else {
        // directly removing
        rm = createRmCb(vnode.elm, listeners)
      }
      // recursively invoke hooks on child component root node
      if (isDef(i = vnode.componentInstance) && isDef(i = i._vnode) && isDef(i.data)) {
        removeAndInvokeRemoveHook(i, rm)
      }
      for (i = 0; i < cbs.remove.length; ++i) {
        cbs.remove[i](vnode, rm)
      }
      if (isDef(i = vnode.data.hook) && isDef(i = i.remove)) {
        i(vnode, rm)
      } else {
        rm()
      }
    } else {
      removeNode(vnode.elm)
    }
  }

  // diff操作核心算法
  function updateChildren (parentElm, oldCh, newCh, insertedVnodeQueue, removeOnly) {
    // 记录新旧节点列表的首尾元素 用于比较
    let oldStartIdx = 0
    let newStartIdx = 0
    let oldEndIdx = oldCh.length - 1
    let oldStartVnode = oldCh[0]
    let oldEndVnode = oldCh[oldEndIdx]
    let newEndIdx = newCh.length - 1
    let newStartVnode = newCh[0]
    let newEndVnode = newCh[newEndIdx]
    let oldKeyToIdx, idxInOld, vnodeToMove, refElm

    // removeOnly is a special flag used only by <transition-group>
    // to ensure removed elements stay in correct relative positions
    // during leaving transitions
    // 在transition中 不能移动节点
    const canMove = !removeOnly
    // 检查是否有重复的key
    if (process.env.NODE_ENV !== 'production') {
      checkDuplicateKeys(newCh)
    }

    // 一共分四种情况讨论, 旧列表第一个与新列表第一个对比, 旧列表最后一个与新列表最后一个对比
    // 然后新列表第一个和旧列表最后一个对比, 新列表最后一个和旧列表第一个对比
    // 之所以要交叉头尾对比, 是为了防止最差的情况出现
    while (oldStartIdx <= oldEndIdx && newStartIdx <= newEndIdx) {
      if (isUndef(oldStartVnode)) {
        oldStartVnode = oldCh[++oldStartIdx] // Vnode has been moved left
      } else if (isUndef(oldEndVnode)) {
        oldEndVnode = oldCh[--oldEndIdx]
      } else if (sameVnode(oldStartVnode, newStartVnode)) {
        patchVnode(oldStartVnode, newStartVnode, insertedVnodeQueue)
        oldStartVnode = oldCh[++oldStartIdx]
        newStartVnode = newCh[++newStartIdx]
      } else if (sameVnode(oldEndVnode, newEndVnode)) {
        patchVnode(oldEndVnode, newEndVnode, insertedVnodeQueue)
        oldEndVnode = oldCh[--oldEndIdx]
        newEndVnode = newCh[--newEndIdx]
      } else if (sameVnode(oldStartVnode, newEndVnode)) { // Vnode moved right
        patchVnode(oldStartVnode, newEndVnode, insertedVnodeQueue)
        canMove && nodeOps.insertBefore(parentElm, oldStartVnode.elm, nodeOps.nextSibling(oldEndVnode.elm))
        oldStartVnode = oldCh[++oldStartIdx]
        newEndVnode = newCh[--newEndIdx]
      } else if (sameVnode(oldEndVnode, newStartVnode)) { // Vnode moved left
        patchVnode(oldEndVnode, newStartVnode, insertedVnodeQueue)
        canMove && nodeOps.insertBefore(parentElm, oldEndVnode.elm, oldStartVnode.elm)
        oldEndVnode = oldCh[--oldEndIdx]
        newStartVnode = newCh[++newStartIdx]
      } else {
        // 以上四种情况都不满足时, 使用新列表第一个vdom的key去旧列表查找
        // 如果可以找到key相同的元素, 直接进行patch然后进入下一次循环
        // 找不到则插入一个新节点
        if (isUndef(oldKeyToIdx)) oldKeyToIdx = createKeyToOldIdx(oldCh, oldStartIdx, oldEndIdx)
        idxInOld = isDef(newStartVnode.key)
          ? oldKeyToIdx[newStartVnode.key]
          : findIdxInOld(newStartVnode, oldCh, oldStartIdx, oldEndIdx)
        if (isUndef(idxInOld)) { // New element
          createElm(newStartVnode, insertedVnodeQueue, parentElm, oldStartVnode.elm, false, newCh, newStartIdx)
        } else {
          vnodeToMove = oldCh[idxInOld]
          if (sameVnode(vnodeToMove, newStartVnode)) {
            patchVnode(vnodeToMove, newStartVnode, insertedVnodeQueue)
            oldCh[idxInOld] = undefined
            canMove && nodeOps.insertBefore(parentElm, vnodeToMove.elm, oldStartVnode.elm)
          } else {
            // same key but different element. treat as new element
            createElm(newStartVnode, insertedVnodeQueue, parentElm, oldStartVnode.elm, false, newCh, newStartIdx)
          }
        }
        newStartVnode = newCh[++newStartIdx]
      }
    }
    // 新旧列表其中之一全部循环完成后, 开始清理剩余的节点
    // 如果旧列表全部遍历完成, 新列表还有剩余, 直接创建这些新节点
    // 反之, 如果新列表全部遍历, 旧列表还有剩余, 直接删除这些旧节点
    if (oldStartIdx > oldEndIdx) {
      refElm = isUndef(newCh[newEndIdx + 1]) ? null : newCh[newEndIdx + 1].elm
      addVnodes(parentElm, refElm, newCh, newStartIdx, newEndIdx, insertedVnodeQueue)
    } else if (newStartIdx > newEndIdx) {
      removeVnodes(parentElm, oldCh, oldStartIdx, oldEndIdx)
    }
  }

  /**   * 检查是否有重复的key   * 一个很简单的遍历查找重复值的操作   * 其实这个seenKeys我觉得改成数组会更好, 写成object又给每个key的value置为true蛮奇怪的   */
  function checkDuplicateKeys (children) {
    const seenKeys = {}
    for (let i = 0; i < children.length; i++) {
      const vnode = children[i]
      const key = vnode.key
      if (isDef(key)) {
        if (seenKeys[key]) {
          warn(
            `Duplicate keys detected: '${key}'. This may cause an update error.`,
            vnode.context
          )
        } else {
          seenKeys[key] = true
        }
      }
    }
  }

  /**   * 在旧的子节点列表寻找相似节点(只查找第一个)   */
  function findIdxInOld (node, oldCh, start, end) {
    for (let i = start; i < end; i++) {
      const c = oldCh[i]
      if (isDef(c) && sameVnode(node, c)) return i
    }
  }

  function patchVnode (oldVnode, vnode, insertedVnodeQueue, removeOnly) {
    // 如果oldVnode跟vnode完全一致,那么不需要做任何事情
    if (oldVnode === vnode) {
      return
    }

    const elm = vnode.elm = oldVnode.elm

    if (isTrue(oldVnode.isAsyncPlaceholder)) {
      if (isDef(vnode.asyncFactory.resolved)) {
        hydrate(oldVnode.elm, vnode, insertedVnodeQueue)
      } else {
        vnode.isAsyncPlaceholder = true
      }
      return
    }
    // 如果oldVnode跟vnode都是静态节点,且具有相同的key
    // 当vnode是克隆节点或是v-once指令控制的节点时
    // 只需要把oldVnode.elm和oldVnode.child都复制到vnode上,也不用再有其他操作
    // reuse element for static trees.
    // note we only do this if the vnode is cloned -
    // if the new node is not cloned it means the render functions have been
    // reset by the hot-reload-api and we need to do a proper re-render.
    if (isTrue(vnode.isStatic) &&
      isTrue(oldVnode.isStatic) &&
      vnode.key === oldVnode.key &&
      (isTrue(vnode.isCloned) || isTrue(vnode.isOnce))
    ) {
      vnode.componentInstance = oldVnode.componentInstance
      return
    }

    let i
    const data = vnode.data
    if (isDef(data) && isDef(i = data.hook) && isDef(i = i.prepatch)) {
      i(oldVnode, vnode)
    }

    const oldCh = oldVnode.children
